Inverse Heat Transfer with Automatic Differentiation

In this tutorial, you will learn how to:

1. Build a Tesseract that wraps a forward model written in plain Fortran, whose derivatives are generated automatically by Enzyme at the LLVM IR level – with no hand-written adjoint code and no source modifications.

2. Bridge the Fortran solver into JAX with tesseract-jax, so that it behaves as an ordinary differentiable JAX function.

3. Verify the resulting gradients against an independently derived analytic gradient.

4. Use the gradients to solve a 900-parameter inverse heat-transfer problem with scipy.optimize.

Context

Inverse heat-transfer problems arise across engineering: reconstructing an unknown initial temperature distribution, a heat source, or a boundary condition from a limited set of later measurements. These problems are typically ill-posed and high-dimensional, which makes gradient-based optimization the practical approach – provided gradients of the forward solver are available.

The forward model here is a 2D transient heat-conduction solver written in plain Fortran. Many established scientific solvers are written in Fortran or C and were never designed to be differentiable, so obtaining gradients usually means writing and maintaining adjoint code by hand. Enzyme avoids this by differentiating the compiled LLVM IR directly: it synthesizes forward- and reverse-mode derivatives from the solver as built, without source changes.

Wrapped as a Tesseract and bridged into JAX with tesseract-jax, the Fortran solver becomes an ordinary differentiable JAX function, so jax.grad flows through it like any other JAX operation. The optimizer in this notebook only ever interacts with a JAX function; the underlying solver and its differentiation are encapsulated behind the Tesseract.

Step 1: Build and serve the Enzyme AD Tesseract

The build compiles the Fortran source to LLVM IR with LFortran, runs the Enzyme AD pass to synthesize forward- and reverse-mode derivatives, and links everything into a shared library – all inside the container. This step downloads the LLVM 19 toolchain and builds Enzyme from source, so the first build takes a few minutes.

%%bash
# Render the build status statically instead of an animated progress
# spinner, which streams as noise in captured notebook output.
export TERM=dumb
tesseract build .

 [i] Building image ...
 [i] Built image sha256:0172263cf380, ['enzyme-thermal-2d:1.0.0', 'enzyme-thermal-2d:latest']

["enzyme-thermal-2d:1.0.0", "enzyme-thermal-2d:latest"]

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
from tesseract_jax import apply_tesseract

from tesseract_core import Tesseract

# JAX needs float64 to match the Fortran solver's double precision.
jax.config.update("jax_enable_x64", True)

# Serve the Tesseract; it stays alive for the rest of the notebook.
enzyme_tess = Tesseract.from_image("enzyme-thermal-2d")
enzyme_tess.serve()

# Grid and simulation parameters (fixed throughout)
nx, ny = 30, 30
n = nx * ny
n_steps = 500
dt = 0.05  # 500 steps x 0.05s = 25s (CFL-safe up to k0 ~ 80)
Lx, Ly = 0.1, 0.05

# Fixed physical parameters
rho = 7850.0  # density [kg/m^3] (mild steel)
cp = 460.0  # specific heat [J/(kg*K)]
h_conv = 25.0  # convection coefficient [W/(m^2*K)]
T_inf = 293.15  # ambient temperature [K]
T_hot = 373.15  # hot wall temperature [K]

# Initial condition: uniform ambient temperature
T_init = np.full(n, T_inf)
Q = np.zeros(n)  # no internal heating

rng = np.random.default_rng(42)  # reproducible noise

# Figures are written here (gitignored); copy into docs/static/blog/
# as enzyme-<name>.png by hand when updating the blog post.
FIGURE_DIR = Path("figures")
FIGURE_DIR.mkdir(exist_ok=True)

print(f"Simulation: {n_steps} steps x {dt}s = {n_steps * dt:.0f}s total")

Simulation: 500 steps x 0.05s = 25s total

Step 2: Verify the gradients against an analytic derivative

Before using the gradients in an optimizer, we check them against a derivative we can compute independently, without Enzyme anywhere in the loop.

For one regime we can do exactly that. Setting the conductivity’s temperature coefficient \(k_1 = 0\) makes the solver linear: each explicit step is an affine map of the temperature field, \(T^{s+1} = A(k_0)\,T^s + c(k_0)\), where the operators \(A\) and \(c\) encode the stencil and the mixed boundary conditions and depend affinely on \(k_0\). This structure gives the exact derivative of the whole multi-step trajectory via the tangent recurrence

\[\frac{\partial T^{s+1}}{\partial k_0} = A_1\,T^s + A(k_0)\,\frac{\partial T^s}{\partial k_0} + c_1,\]

which we iterate in plain NumPy. We recover \(A\) and \(c\) by probing the solver at two stable \(k_0\) values (the map is exactly affine in \(k_0\), so any two recover it with no truncation error), confirm the reconstruction reproduces the solver’s trajectory to roundoff, then compare the analytic gradient against Enzyme’s VJP. For reference, we also include a finite-difference estimate swept over step size, which agrees with the analytic gradient only to limited accuracy.

# --- Independent analytic-gradient benchmark (linear regime, k1 = 0) ---
k0_bench = 45.0  # CFL r ~ 0.26; both probe values must keep r < 0.5
coef = dt / (rho * cp)


def _bench_inputs(k0, n_steps_, field):
    return {
        "T_init": jnp.asarray(field),
        "Q": jnp.asarray(Q),
        "nx": nx,
        "ny": ny,
        "n_steps": n_steps_,
        "k0": jnp.float64(k0),
        "k1": jnp.float64(0.0),  # linear regime
        "rho": jnp.float64(rho),
        "cp": jnp.float64(cp),
        "h_conv": jnp.float64(h_conv),
        "T_inf": jnp.float64(T_inf),
        "T_hot": jnp.float64(T_hot),
        "Lx": jnp.float64(Lx),
        "Ly": jnp.float64(Ly),
        "dt": jnp.float64(dt),
    }


def _step(field, k0):
    """One explicit solver step from `field` at conductivity k0."""
    out = apply_tesseract(enzyme_tess, _bench_inputs(k0, 1, field))["T_final"]
    return np.asarray(out, dtype=np.float64)


def _affine_map(k0):
    """Recover U(T;k0) = A T + c via unit probes (n+1 solver calls)."""
    c = _step(np.zeros(n), k0)
    A = np.zeros((n, n))
    for j in range(n):
        e = np.zeros(n)
        e[j] = 1.0
        A[:, j] = _step(e, k0) - c
    return A, c


# Non-uniform initial field so the gradient is non-degenerate.
xb, yb = np.linspace(0, Lx, nx), np.linspace(0, Ly, ny)
XXb, YYb = np.meshgrid(xb, yb)
T_init_bench = (
    T_inf + 40.0 * np.sin(np.pi * XXb / Lx) * np.sin(np.pi * YYb / Ly)
).ravel()

ka, kb = 45.0, 40.0
print(f"Recovering affine map at k0={ka} ({n} probes)...")
Aa, ca = _affine_map(ka)
print(f"Recovering affine map at k0={kb} ({n} probes)...")
Ab, cb = _affine_map(kb)

A1 = (Aa - Ab) / (ka - kb)
A0 = Aa - ka * A1
c1 = (ca - cb) / (ka - kb)
c0 = ca - ka * c1
A = A0 + k0_bench * A1
c = c0 + k0_bench * c1

# Exact tangent recurrence over the full 500-step trajectory (pure NumPy).
T = T_init_bench.copy()
dT = np.zeros(n)
for _ in range(n_steps):
    dT = A1 @ T + A @ dT + c1
    T = A @ T + c
analytic = float(np.sum(dT))

# Consistency check: does the affine model match the solver's real trajectory?
T_solver = np.asarray(
    apply_tesseract(enzyme_tess, _bench_inputs(k0_bench, n_steps, T_init_bench))[
        "T_final"
    ],
    dtype=np.float64,
)
traj_rel = np.linalg.norm(T - T_solver) / np.linalg.norm(T_solver)
print(f"affine-model vs solver trajectory rel err = {traj_rel:.2e}")

# Enzyme VJP of the same scalar (cotangent = ones).
vjp = enzyme_tess.vector_jacobian_product(
    inputs=_bench_inputs(k0_bench, n_steps, T_init_bench),
    vjp_inputs=["k0"],
    vjp_outputs=["T_final"],
    cotangent_vector={"T_final": np.ones(n)},
)
enzyme_grad = float(vjp["k0"])
enzyme_err = abs(enzyme_grad - analytic) / (abs(analytic) + 1e-30)
print(f"analytic gradient = {analytic:.10e}")
print(f"enzyme   gradient = {enzyme_grad:.10e}")
print(f"Enzyme rel err vs analytic = {enzyme_err:.2e}")

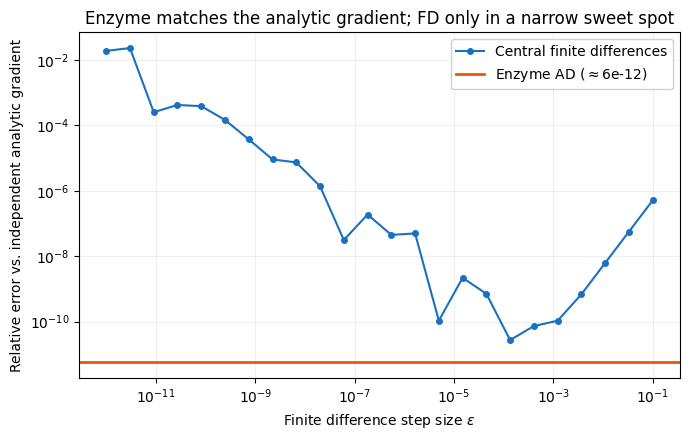

# Central finite differences vs the same analytic reference, swept over step size.
epsilons = np.logspace(-1, -12, 24)
fd_err = []
for eps in epsilons:
    Tp = np.asarray(
        apply_tesseract(
            enzyme_tess, _bench_inputs(k0_bench + eps, n_steps, T_init_bench)
        )["T_final"]
    )
    Tm = np.asarray(
        apply_tesseract(
            enzyme_tess, _bench_inputs(k0_bench - eps, n_steps, T_init_bench)
        )["T_final"]
    )
    fd = np.sum(Tp - Tm) / (2 * eps)
    fd_err.append(abs(fd - analytic) / (abs(analytic) + 1e-30))

fig, ax = plt.subplots(1, 1, figsize=(7, 4.5))
ax.loglog(
    epsilons, fd_err, "o-", ms=4, color="#1971c2", label="Central finite differences"
)
ax.axhline(
    enzyme_err, color="#e8590c", lw=2, label=f"Enzyme AD ($\\approx${enzyme_err:.0e})"
)
ax.set_xlabel("Finite difference step size $\\epsilon$")
ax.set_ylabel("Relative error vs. independent analytic gradient")
ax.set_title("Enzyme matches the analytic gradient; FD only in a narrow sweet spot")
ax.legend(framealpha=0.9)
ax.grid(True, alpha=0.2)
plt.tight_layout()
fig.savefig(FIGURE_DIR / "analytic_benchmark.png", dpi=180, bbox_inches="tight")
plt.show()

Recovering affine map at k0=45.0 (900 probes)...
Recovering affine map at k0=40.0 (900 probes)...
affine-model vs solver trajectory rel err = 1.13e-14
analytic gradient = 2.4101518794e+02
enzyme   gradient = 2.4101518794e+02
Enzyme rel err vs analytic = 5.63e-12

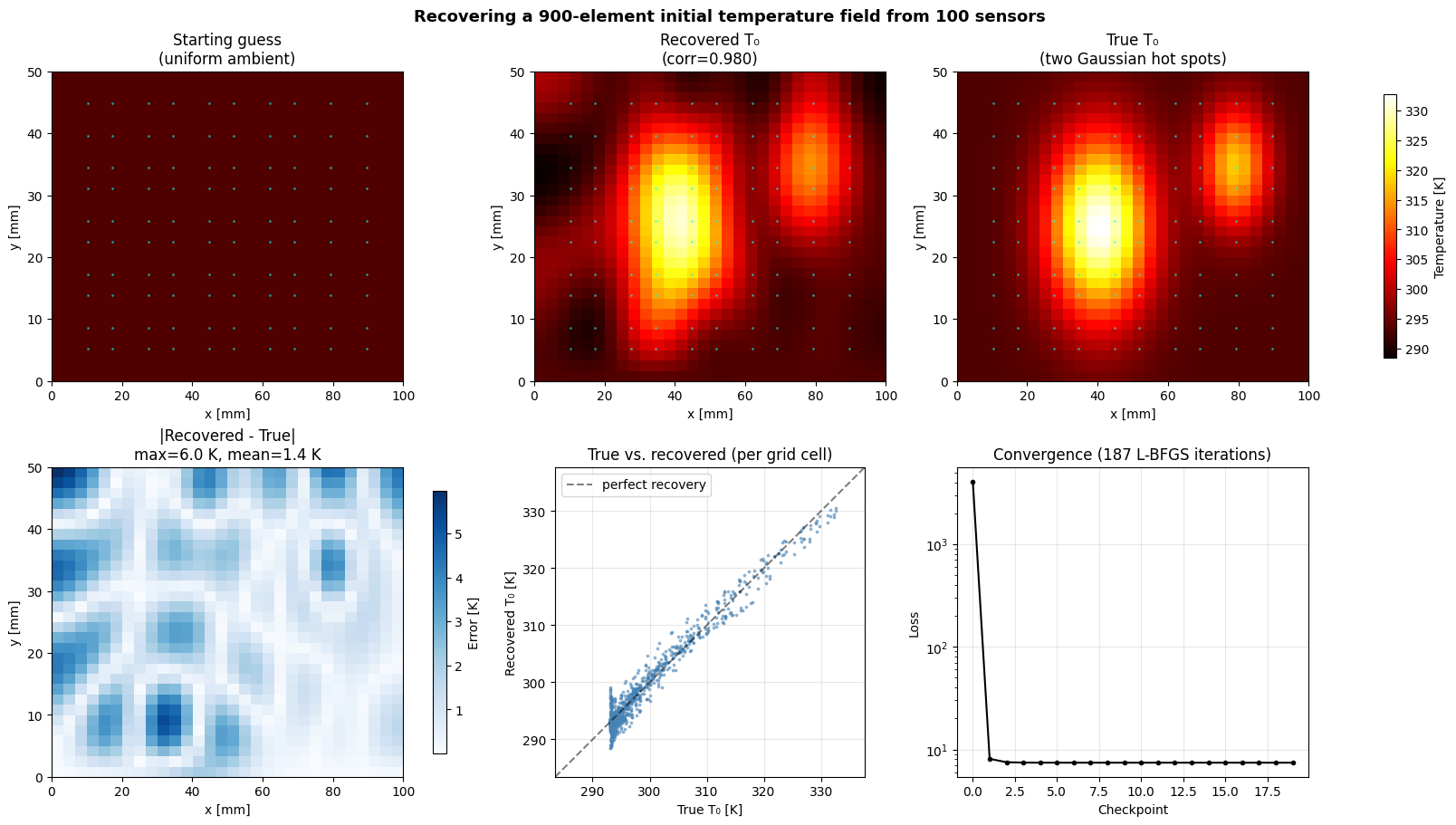

Step 3: Inverse problem – recovering a hidden heat signature (900 parameters)

Suppose a steel plate was subjected to an unmonitored heating event – for example a laser pulse or a localized defect generating heat. Five seconds later, we measure temperatures at 100 sensor locations and want to reconstruct the initial temperature distribution.

This is an ill-posed inverse problem: 900 unknowns (the temperature at every grid cell) inferred from 100 noisy observations, through a nonlinear PDE. We add a small Tikhonov term that penalizes departure from the ambient prior, which regularizes the problem; the optimizer is a standard jax.value_and_grad + L-BFGS-B loop over all 900 unknowns. This is a setting where reverse-mode AD is essential rather than merely convenient:

Method	Forward solves per iteration
Finite differences	901 (N+1)
Reverse-mode AD	2 (forward + reverse)
Speedup	~450×

Finite differences would need 901 forward solves every iteration to assemble all 900 gradients; one reverse sweep returns them all for roughly the cost of two forward passes. The Tikhonov term is just another addition to the JAX loss, which jax.value_and_grad differentiates along with the rest.

# --- Forensics setup ---
# Shorter simulation: 5 seconds (we want residual structure in the initial field)
n_steps_p2 = 100
dt_p2 = 0.05

# Fixed material properties (known — we're recovering T_init, not k)
k0_p2 = 45.0
k1_p2 = -0.01

# Build coordinate arrays for the 30x30 grid
x = np.linspace(0, Lx, nx)
y = np.linspace(0, Ly, ny)
X, Y = np.meshgrid(x, y)
X_flat, Y_flat = X.flatten(), Y.flatten()

# True initial temperature: two Gaussian hot spots on a warm background
T_init_true = (
    T_inf
    + 40.0 * np.exp(-((X_flat - 0.04) ** 2 + (Y_flat - 0.025) ** 2) / 0.015**2)
    + 25.0 * np.exp(-((X_flat - 0.08) ** 2 + (Y_flat - 0.035) ** 2) / 0.01**2)
)


def make_inputs_p2(T_init_field):
    """Inputs for the forensics problem; T_init_field is the differentiable unknown."""
    return {
        "T_init": jnp.asarray(T_init_field),
        "Q": jnp.asarray(Q),
        "nx": nx,
        "ny": ny,
        "n_steps": n_steps_p2,
        "k0": jnp.float64(k0_p2),
        "k1": jnp.float64(k1_p2),
        "rho": jnp.float64(rho),
        "cp": jnp.float64(cp),
        "h_conv": jnp.float64(h_conv),
        "T_inf": jnp.float64(T_inf),
        "T_hot": jnp.float64(T_hot),
        "Lx": jnp.float64(Lx),
        "Ly": jnp.float64(Ly),
        "dt": jnp.float64(dt_p2),
    }


def solve_p2(T_init_field):
    return apply_tesseract(enzyme_tess, make_inputs_p2(T_init_field))["T_final"]


# Run forward simulation with the true initial field
T_final_true_p2 = np.asarray(solve_p2(T_init_true))

# 10x10 sensor grid (100 sensors in the interior)
sensor_ix_p2 = np.linspace(3, nx - 4, 10, dtype=int)
sensor_jy_p2 = np.linspace(3, ny - 4, 10, dtype=int)
sensor_grid = np.array([(jy * nx + ix) for jy in sensor_jy_p2 for ix in sensor_ix_p2])
n_sensors_p2 = len(sensor_grid)

# Observed data: true final temperatures at sensors + noise
noise_std_p2 = 0.3  # K
T_obs_p2 = T_final_true_p2[sensor_grid] + rng.normal(0, noise_std_p2, n_sensors_p2)

print(f"Grid: {nx}x{ny} = {n} unknowns")
print(f"Sensors: {n_sensors_p2}")
print(f"Simulation: {n_steps_p2} steps x {dt_p2}s = {n_steps_p2 * dt_p2:.0f}s")
print(f"True T_init range: {T_init_true.min():.1f} — {T_init_true.max():.1f} K")

Grid: 30x30 = 900 unknowns
Sensors: 100
Simulation: 100 steps x 0.05s = 5s
True T_init range: 293.2 — 332.7 K

import time

from scipy.optimize import minimize

T_obs_p2_jax = jnp.asarray(T_obs_p2)
sensor_grid_jax = jnp.asarray(sensor_grid)

# Tikhonov regularization weight: penalizes departure from the ambient prior,
# which stabilizes this ill-posed problem (900 unknowns, 100 observations).
alpha_reg = 1e-4


def loss_fn_p2(T_init_vec):
    """Regularized sensor-misfit loss for the 900-element initial field. Pure JAX."""
    T_pred = solve_p2(T_init_vec)
    residuals = T_pred[sensor_grid_jax] - T_obs_p2_jax
    data_loss = 0.5 * jnp.sum(residuals**2)
    reg_loss = 0.5 * alpha_reg * jnp.sum((T_init_vec - T_inf) ** 2)
    return data_loss + reg_loss


value_and_grad_p2 = jax.jit(jax.value_and_grad(loss_fn_p2))

# warm up JIT
_ = value_and_grad_p2(jnp.asarray(T_init))


def scipy_objective_p2(T_init_vec):
    loss, grad = value_and_grad_p2(jnp.asarray(T_init_vec))
    return float(loss), np.asarray(grad, dtype=np.float64)


# Start from uniform ambient (the wrong answer)
T_init_guess = np.full(n, T_inf)
loss_history_p2 = []

iter_count = [0]
t_start = time.time()


def callback_p2(x):
    iter_count[0] += 1
    if iter_count[0] % 10 == 0:
        loss, _ = scipy_objective_p2(x)
        loss_history_p2.append(loss)
        elapsed = time.time() - t_start
        print(f"  iter {iter_count[0]:3d}: loss={loss:.4f}, elapsed={elapsed:.1f}s")


loss0_p2 = scipy_objective_p2(T_init_guess)[0]
loss_history_p2.append(loss0_p2)
print(f"Initial loss: {loss0_p2:.2f}")
print(f"Running L-BFGS-B with {n} parameters...")

result_p2 = minimize(
    fun=scipy_objective_p2,
    x0=T_init_guess,
    method="L-BFGS-B",
    jac=True,
    bounds=[(250.0, 450.0)] * n,
    callback=callback_p2,
    options={"maxiter": 200, "ftol": 1e-15, "gtol": 1e-10},
)

elapsed_total = time.time() - t_start
loss_final = scipy_objective_p2(result_p2.x)[0]
loss_history_p2.append(loss_final)
T_init_recovered = result_p2.x

print(f"\nOptimization finished: {result_p2.nit} iterations, {elapsed_total:.1f}s")
print(f"Loss: {loss0_p2:.2f} → {loss_final:.4f}")
print(f"T_init correlation: {np.corrcoef(T_init_true, T_init_recovered)[0, 1]:.4f}")
print("\nCost comparison per iteration:")
print(
    f"  Finite differences: {n + 1} forward solves = "
    f"~{(n + 1) * elapsed_total / result_p2.nfev:.1f}s"
)
print(
    f"  Reverse-mode AD:    2 solves (fwd+rev)   = "
    f"~{2 * elapsed_total / result_p2.nfev:.2f}s"
)

Initial loss: 4085.86
Running L-BFGS-B with 900 parameters...
  iter  10: loss=8.0931, elapsed=0.4s
  iter  20: loss=7.5007, elapsed=0.8s
  iter  30: loss=7.4350, elapsed=1.2s
  iter  40: loss=7.4246, elapsed=1.7s
  iter  50: loss=7.4222, elapsed=2.0s
  iter  60: loss=7.4216, elapsed=2.4s
  iter  70: loss=7.4215, elapsed=2.8s
  iter  80: loss=7.4215, elapsed=3.2s
  iter  90: loss=7.4215, elapsed=3.5s
  iter 100: loss=7.4215, elapsed=3.8s
  iter 110: loss=7.4215, elapsed=4.2s
  iter 120: loss=7.4215, elapsed=4.5s
  iter 130: loss=7.4215, elapsed=4.9s
  iter 140: loss=7.4215, elapsed=5.3s
  iter 150: loss=7.4215, elapsed=5.6s
  iter 160: loss=7.4215, elapsed=6.0s
  iter 170: loss=7.4215, elapsed=6.3s
  iter 180: loss=7.4215, elapsed=6.7s

Optimization finished: 187 iterations, 8.4s
Loss: 4085.86 → 7.4215
T_init correlation: 0.9804

Cost comparison per iteration:
  Finite differences: 901 forward solves = ~30.5s
  Reverse-mode AD:    2 solves (fwd+rev)   = ~0.07s

fig, axes = plt.subplots(2, 3, figsize=(16, 9), layout="constrained")

extent = [0, Lx * 1e3, 0, Ly * 1e3]

# --- Top row: initial temperature fields ---
vmin_init = min(T_init_true.min(), T_init_recovered.min(), T_inf)
vmax_init = max(T_init_true.max(), T_init_recovered.max())

axes[0, 0].imshow(
    T_init_guess.reshape(ny, nx),
    origin="lower",
    cmap="hot",
    extent=extent,
    aspect="auto",
    vmin=vmin_init,
    vmax=vmax_init,
)
axes[0, 0].set_title("Starting guess\n(uniform ambient)")

axes[0, 1].imshow(
    T_init_recovered.reshape(ny, nx),
    origin="lower",
    cmap="hot",
    extent=extent,
    aspect="auto",
    vmin=vmin_init,
    vmax=vmax_init,
)
axes[0, 1].set_title(
    f"Recovered T₀\n(corr={np.corrcoef(T_init_true, T_init_recovered)[0, 1]:.3f})"
)

im_true = axes[0, 2].imshow(
    T_init_true.reshape(ny, nx),
    origin="lower",
    cmap="hot",
    extent=extent,
    aspect="auto",
    vmin=vmin_init,
    vmax=vmax_init,
)
axes[0, 2].set_title("True T₀\n(two Gaussian hot spots)")

plt.colorbar(im_true, ax=axes[0, :].tolist(), label="Temperature [K]", shrink=0.85)

# Mark sensor locations on all top-row plots
for ax in axes[0, :]:
    for jy_idx in sensor_jy_p2:
        for ix_idx in sensor_ix_p2:
            x_mm = ix_idx / (nx - 1) * Lx * 1e3
            y_mm = jy_idx / (ny - 1) * Ly * 1e3
            ax.plot(x_mm, y_mm, ".", color="cyan", markersize=2, alpha=0.5)
    ax.set_xlabel("x [mm]")
    ax.set_ylabel("y [mm]")

# --- Bottom row: diagnostics ---
error_p2 = np.abs(T_init_recovered - T_init_true).reshape(ny, nx)
im_err = axes[1, 0].imshow(
    error_p2, origin="lower", cmap="Blues", extent=extent, aspect="auto"
)
axes[1, 0].set_title(
    f"|Recovered - True|\nmax={error_p2.max():.1f} K, mean={error_p2.mean():.1f} K"
)
axes[1, 0].set_xlabel("x [mm]")
axes[1, 0].set_ylabel("y [mm]")
plt.colorbar(im_err, ax=axes[1, 0], label="Error [K]", shrink=0.85)

axes[1, 1].scatter(T_init_true, T_init_recovered, s=3, alpha=0.5, c="steelblue")
lims = [vmin_init - 5, vmax_init + 5]
axes[1, 1].plot(lims, lims, "k--", alpha=0.5, label="perfect recovery")
axes[1, 1].set_xlim(lims)
axes[1, 1].set_ylim(lims)
axes[1, 1].set_xlabel("True T₀ [K]")
axes[1, 1].set_ylabel("Recovered T₀ [K]")
axes[1, 1].set_title("True vs. recovered (per grid cell)")
axes[1, 1].legend()
axes[1, 1].set_aspect("equal")
axes[1, 1].grid(True, alpha=0.3)

axes[1, 2].semilogy(loss_history_p2, "k.-", linewidth=1.5)
axes[1, 2].set_xlabel("Checkpoint")
axes[1, 2].set_ylabel("Loss")
axes[1, 2].set_title(f"Convergence ({result_p2.nit} L-BFGS iterations)")
axes[1, 2].grid(True, alpha=0.3)

plt.suptitle(
    "Recovering a 900-element initial temperature field from 100 sensors",
    fontsize=13,
    fontweight="bold",
)
fig.savefig(FIGURE_DIR / "thermal_forensics.png", dpi=180, bbox_inches="tight")
plt.show()

Takeaways

Each jax.value_and_grad call above triggered the following chain:

Layer	Technology	Role
Optimizer	SciPy L-BFGS-B	Quasi-Newton update loop
AD framework	JAX reverse-mode	Propagates cotangents
Tesseract bridge	tesseract-jax	Registers JAX primitive, dispatches HTTP calls
Transport	HTTP + JSON	Crosses the process/container boundary
AD engine	Enzyme (LLVM pass)	Generates the VJP from compiled Fortran IR
Solver	Fortran 90	thermal_2d_solve

1. Compiled Fortran can participate in end-to-end AD. The forward solver is plain Fortran and was never modified. Enzyme differentiated it from the compiled LLVM IR, and Tesseract made it callable – and differentiable – from JAX.

2. No hand-coded adjoints. Both the forward- and reverse-mode derivatives are synthesized by the Enzyme pass, rather than derived and maintained by hand.

3. The gradients are verifiable. In the linear regime, Enzyme’s VJP matches an independently derived analytic gradient to roundoff.

4. Reverse-mode AD scales to high-dimensional inverse problems. The same jax.value_and_grad call returns all 900 gradient components from a single reverse sweep, which is what makes the 900-parameter reconstruction tractable.

What’s next

• Change the forward model. Edit the Fortran source and rebuild; Enzyme regenerates the derivatives with no adjoint code to update.

• Try a different inverse problem. Recover a boundary condition or a heat source instead of the initial field, or vary the number and placement of sensors.

• Swap in a different optimizer. Replace L-BFGS-B with any other scipy.optimize or optax optimizer to compare convergence behavior.

• Explore other demos. See the CFD optimization, data assimilation, and FEM shape optimization demos for other ways to compose Tesseracts with JAX.

Questions? Feedback? Please reach out through the Tesseract Community Forum.
